Description
Notice This product supports OBD-II protocol models produced after 2002, including VPW,PWM,ISo,KWP2000,CAN protocol). The product can be connected to a laptop or desktop computer to read and understand the trouble code, clear the car’s trouble code, display the sensor’s data stream (such as speed, water temperature, etc.)

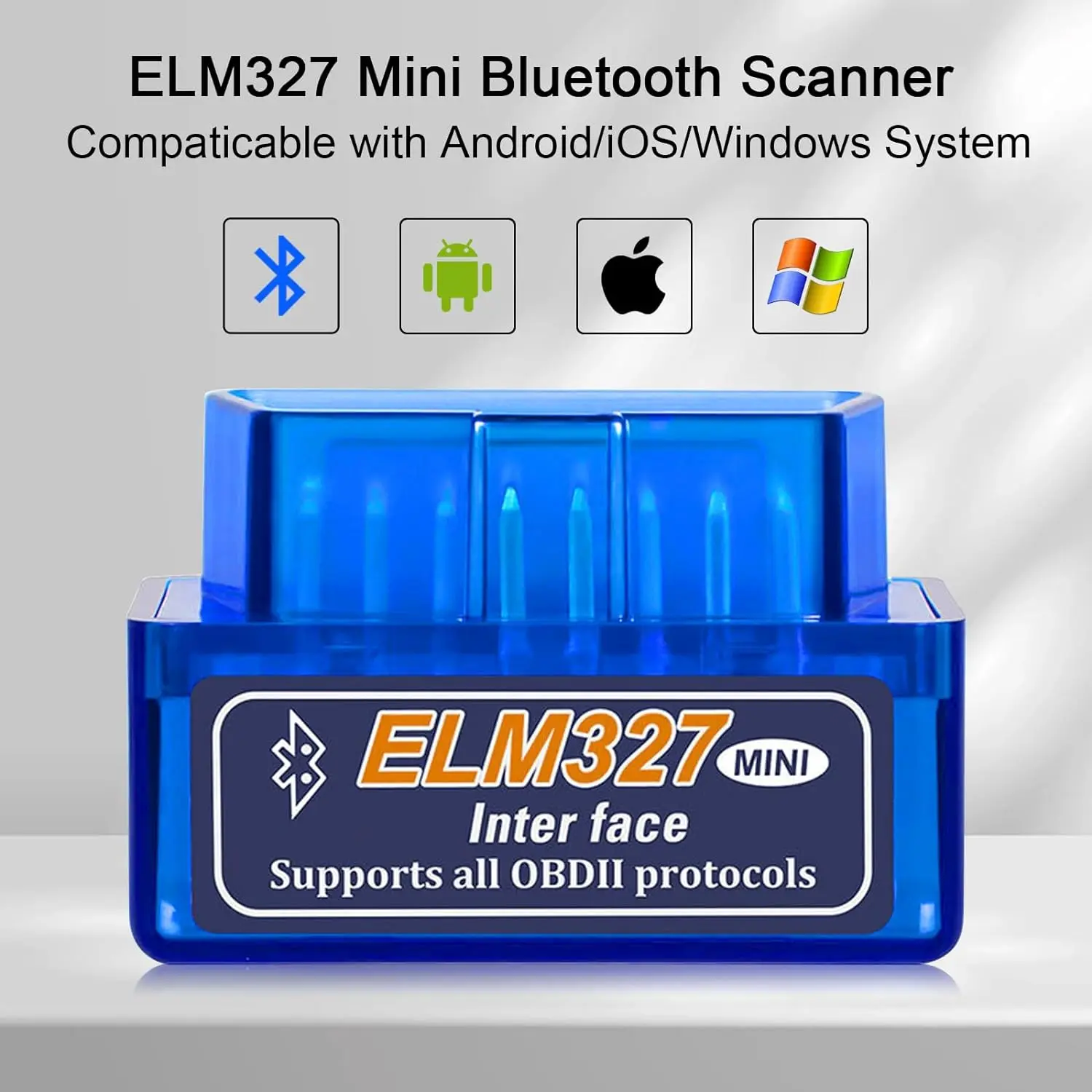

MINI ELM327 Bluetooth Version Features:
Works with all OBD-II compliant vehicles
Bluetooth
Software included for Palm, PDA
Software included for Windows PC
Software included for Windows Smartphone
Support for 7 protocol vehicles:
1、ISO 9141-2 (5 baud init, 10.4 kbaud)
2、ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
3、ISO 14230-4 KWP (fast init, 10.4 kbaud)
4、ISO 15765-4 CAN (11 bit ID, 500 kbaud)
5、ISO 15765-4 CAN (29 bit ID, 500 kbaud)
6、ISO 15765-4 CAN (11 bit ID, 250 kbaud)
7、ISO 15765-4 CAN (29 bit ID, 250 kbaud)
MINI ELM327 Bluetooth Version Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL (“Check Engine” light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
